Choosing the Right Valve Manifold: 2, 3, or 5 Valve Options for Industrial Applications

Selecting the right manifold configuration can significantly improve system performance while reducing downtime and maintenance costs. As a trusted 2 Valve Manifold Manufacturer, 3 Valve Manifold Manufacturer, and 5 Valve Manifold Manufacturer, Quality Industries offers high-quality manifold solutions designed for demanding industrial environments.

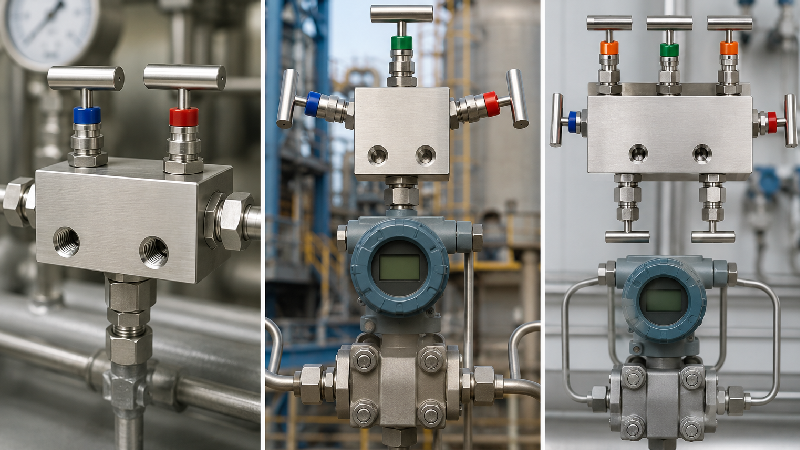

What is a 2, 3, or 5 Valve Manifold?

A valve manifold is a compact assembly of valves used to connect pressure instruments such as transmitters, gauges, and switches to process lines. These manifolds simplify installation, provide instrument isolation, and enable safe calibration procedures.

2 Valve Manifold

A 2 Valve Manifold consists of:

• • One isolation valve
• • One vent or drain valve

It is commonly used with pressure gauges and pressure transmitters where simple isolation and venting functions are required.

3 Valve Manifold

A 3 Valve Manifold includes:

• • Two isolation valves
• • One equalizing valve

This configuration is primarily used with differential pressure transmitters. It allows operators to equalize pressure on both sides of the transmitter before maintenance or calibration.

5 Valve Manifold

A 5 Valve Manifold contains:

• • Two isolation valves
• • One equalizing valve
• • Two vent/test valves

It provides enhanced functionality for calibration, testing, and maintenance operations, making it ideal for critical process applications.

Working Principle

The working principle of valve manifolds is based on controlling the flow of process pressure to measurement instruments. In a 2 Valve Manifold, the isolation valve controls the process pressure entering the instrument, while the vent valve releases trapped pressure during maintenance. In a 3 Valve Manifold, both high-pressure and low-pressure sides can be isolated independently. The equalizing valve balances pressure between both sides, preventing damage to sensitive differential pressure transmitters during startup or shutdown. A 5 Valve Manifold offers the same functionality as a 3-valve configuration while adding two test or vent valves. These additional valves facilitate calibration, pressure testing, and instrument verification without removing the transmitter from the process line.

Technical Specifications

Quality Industries manufactures valve manifolds to meet international quality and performance standards.

Typical specifications include:

• • Pressure Rating: Up to 6000 PSI and above
• • Temperature Range: -54°C to +538°C (depending on material)
• • End Connections: NPT, BSP, BSPT, and customized options
• • Leak Testing: 100% factory tested
• • Operating Torque: Smooth and low-torque operation
• • Seat Design: Metal-to-metal or soft seat options
• • Compliance Standards: ASME, ANSI, BS, and ISO specifications

Custom configurations are also available to meet specific industrial requirements.

Applications

Valve manifolds are widely used across various industries for pressure measurement and instrumentation systems.

Common applications include:

• • Oil & Gas Processing Plants
• • Chemical and Petrochemical Industries
• • Power Generation Facilities
• • Refineries
• • Water Treatment Plants
• • Pharmaceutical Manufacturing
• • Offshore Platforms
• • Process Control Systems
• • Instrumentation Panels
• • Hydraulic and Pneumatic Systems

Whether used for pressure gauges or differential pressure transmitters, valve manifolds ensure safe and reliable operation.

Benefits

Choosing the appropriate valve manifold configuration offers several advantages:

Enhanced Safety

Allows safe isolation and depressurization of instruments before maintenance.

Improved Instrument Protection

Equalizing functions prevent sudden pressure shocks that can damage transmitters.

Reduced Downtime

Simplifies maintenance, calibration, and troubleshooting procedures.

Compact Design

Minimizes piping connections and installation space requirements.

Cost Efficiency

Reduces installation costs and improves overall system reliability.

Long Service Life

High-quality materials and precision manufacturing ensure durability in demanding industrial environments.

How to Choose the Right Valve Manifold

Selecting the correct manifold depends on your application requirements.

Choose a 2 Valve Manifold When:

• • Monitoring static pressure
• • Basic isolation is sufficient
• • Cost-effective solutions are required

Choose a 3 Valve Manifold When:

• • Using differential pressure transmitters
• • Regular calibration is necessary
• • Equalization capability is required

Choose a 5 Valve Manifold When:

• • Working with critical process applications
• • Safe venting and draining are essential
• • Maximum control and maintenance flexibility are needed

Other factors to consider include operating pressure, temperature range, media compatibility, material selection, and industry compliance requirements.

Why Choose Quality Industries?

Quality Industries is committed to delivering precision-engineered valve manifolds that meet international quality standards. With extensive manufacturing expertise and strict quality control processes, the company provides reliable solutions tailored to diverse industrial applications.

Our Advantages:

• • High-quality raw materials
• • Precision machining and testing
• • Corrosion-resistant designs
• • Customized manifold solutions
• • Competitive pricing and timely delivery
• • Trusted 2 Valve Manifold Manufacturer, 3 Valve Manifold Manufacturer, and 5 Valve Manifold Manufacturer

Conclusion

Selecting the right valve manifold is essential for ensuring accurate measurements, safe operations, and efficient maintenance procedures. Whether your application requires a 2 Valve Manifold, 3 Valve Manifold, or 5 Valve Manifold, understanding the functionality of each configuration helps optimize system performance and reduce downtime. By partnering with a reliable manufacturer like Quality Industries, businesses can benefit from durable, high-performance manifold solutions designed to meet the challenges of modern industrial processes.
